Precision CNC machined, engineered details available here, from Prototipo Works:

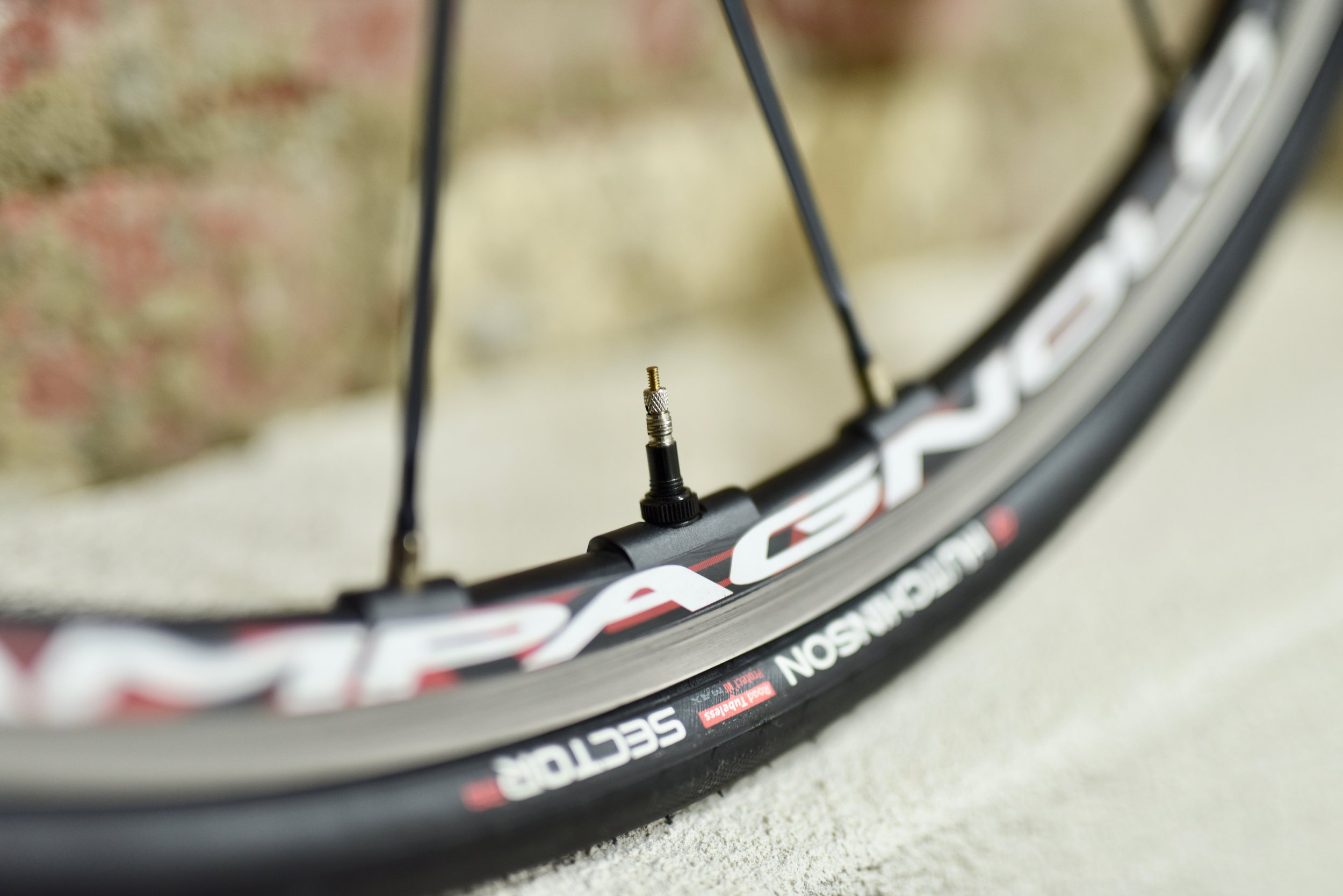

Presta to Schrader Valve Adaptor.
Perfect riding kit addition. Extremely handy to have. Converts Presta (French) valve threads to Schrader (Auto) valve threads. Making it possible to use auto gas station air pumps if caught without a pump.
Alloy Presta Valve Caps.
Strong lightweight, functional finishing details. Fine finishing touches for all Presta (French) valves. Protects against ingress and debris and also if used with spare tubes bundled ready for use or in your jersey pocket without a valve cap, can protect against accidental valve self puncturing.

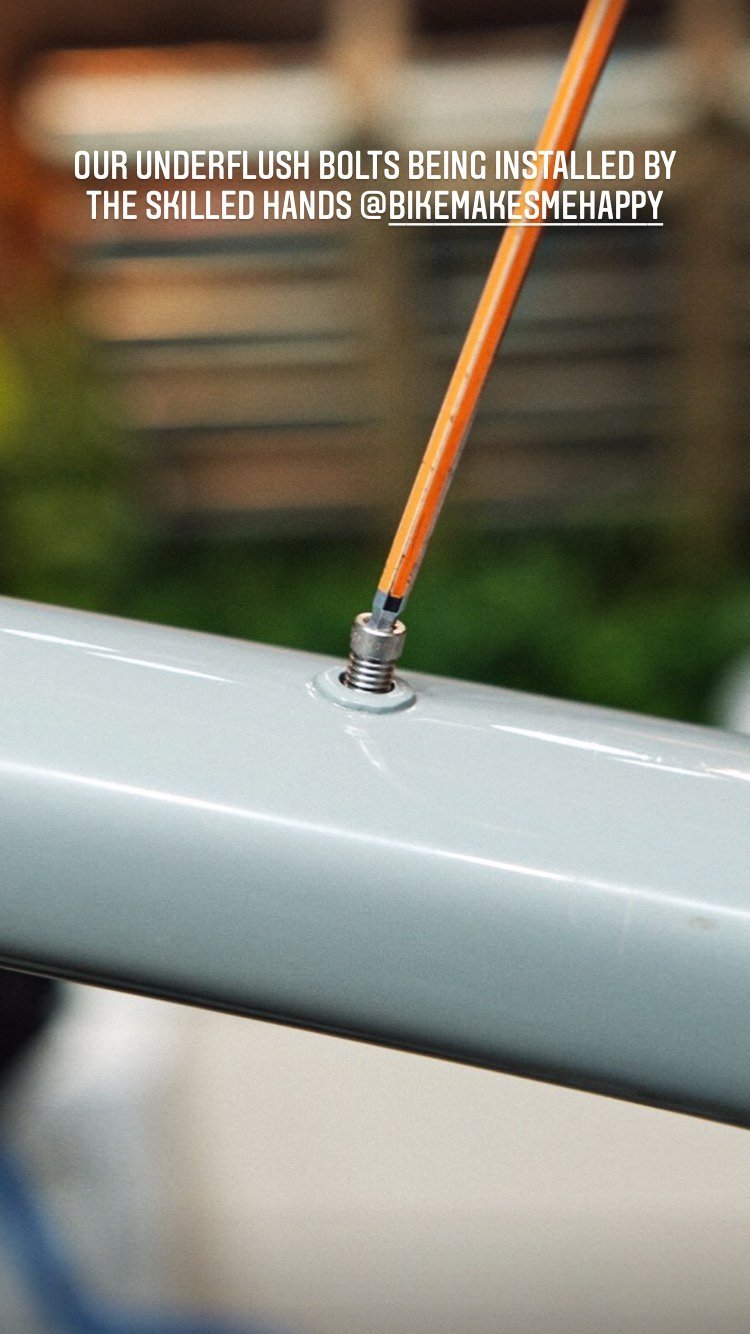

Under Flush Bidon Cage Boss Blanks.
Neatly blank off those unused bidon cage mount holes. Helps stop mud and debris from entering your frame through those open, unused mounts. A perfect finishing touch for your frame if you're creating a clean bidon cage free look.
3 sizes to choose from ensuring a perfect fit and showcase your high attention to detail.

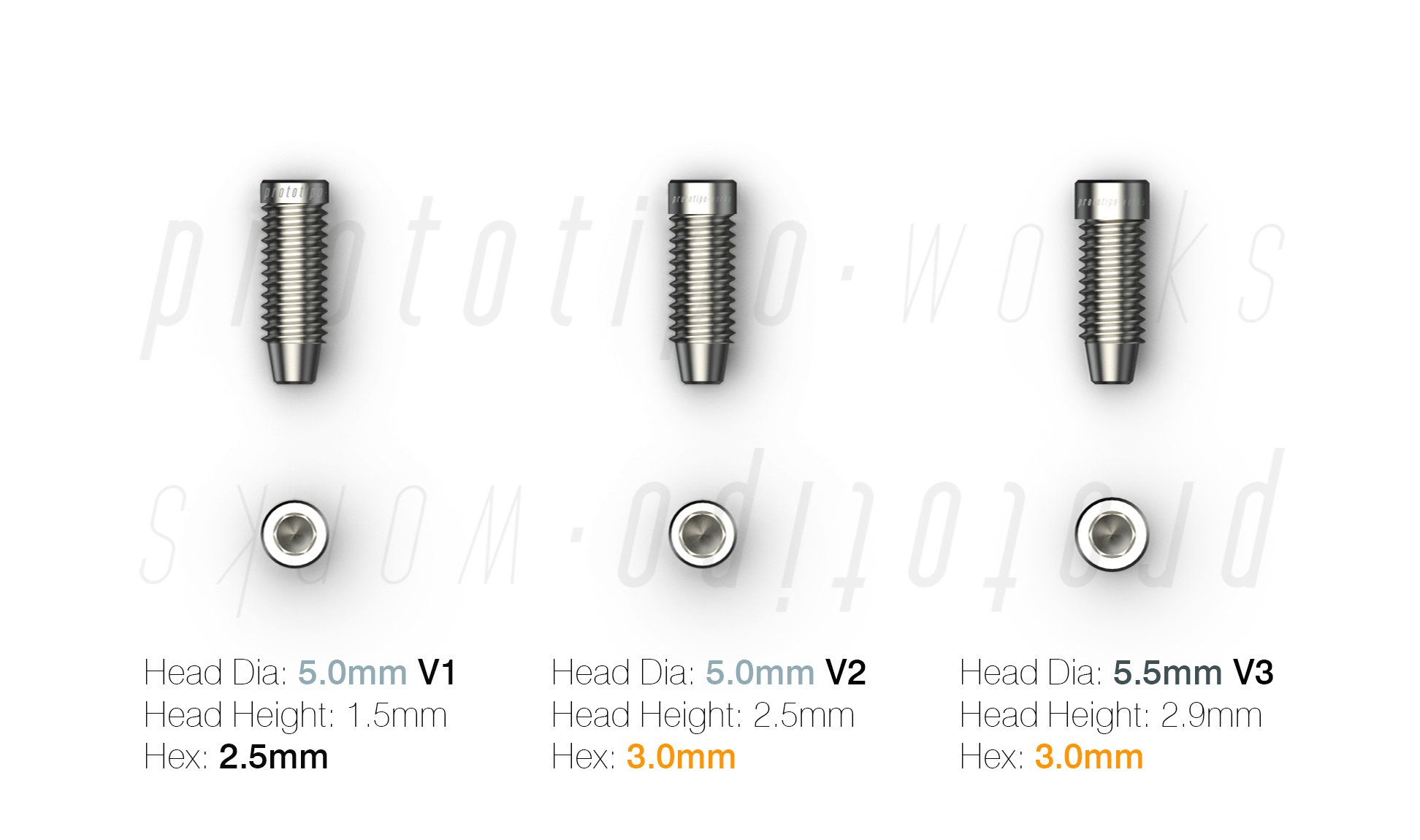

5.0mm Diameter Head V1 - 1.5mm Tall Head, 2.5mm Hex.
5.0mm Diameter Head V2 - 2.5mm Tall Head, 3.0mm Hex.
5.5mm Diameter Head V3 - 2.9mm Tall Head, 3.0mm Hex.
5.0 MM Diameter Head V1. 1.5mm Tall Head, 2.5mm Hex.
A refined variant to perfectly suit a select number of mounts in circulation. For bidon mounts with a 5.1mm (or greater) opening diameter hole with at least a 2mm unthreaded depth before the thread begins into the frame. Made from 316 Stainless Steel (3-5Nm).
5.0 MM Diameter Head V2. 2.5mm Tall Head, 3.0mm Hex.
For bidon mounts with a 5.1mm (or greater) opening diameter hole with at least a 3mm unthreaded depth before the thread begins into the frame. Made from 316 Stainless Steel (3-5Nm).
5.5MM Diameter Head V3. 2.9mm Tall Head, 3.0mm Hex.
For bidon mounts with a 5.6mm (or greater) opening diameter hole with at least a 3mm unthreaded depth before the thread begins into the frame. Made from 316 Stainless Steel (3-5Nm).
Original Bidon (Bottle) Cage Bolts.
Finish Options 1 of 3 - Raw or Stealth Black coated.
Our first design, reproduced due to popular demand in premium 316 Stainless Steel with a max torque rating of 3-5Nm. Available in Silver Polished, Silver Raw and Stealth Black.
(FAQ Size Info: 3mm Hex. Head diameter 9.0mm, Effective thread length 8.75mm.)
Original Bidon (Bottle) Cage Bolts.
Finish Options 2 of 3 - Cerakote Coated.
Our first design, reproduced due to popular demand in premium 316 Stainless Steel with a max torque rating of 3-5Nm with a supreme ultra hard wearing, durable Cerakote finish.
(FAQ Size Info: 3mm Hex. Head diameter 9.0mm, Effective thread length 8.75mm.)
NEW CERAKOTE FINISH AVAILABLE NOW!
Original Bidon (Bottle) Cage Bolts.
Finish Options 3 of 3 - Polished and PVD Titanium Coated.
Our first design, reproduced due to popular demand in premium 316 Stainless Steel with a max torque rating of 3-5Nm. Featuring polished heads and coated in our range of high performance Titanium coatings and colour options. Available in Silver, Charcoal, Sedona, Champagne and Gold.

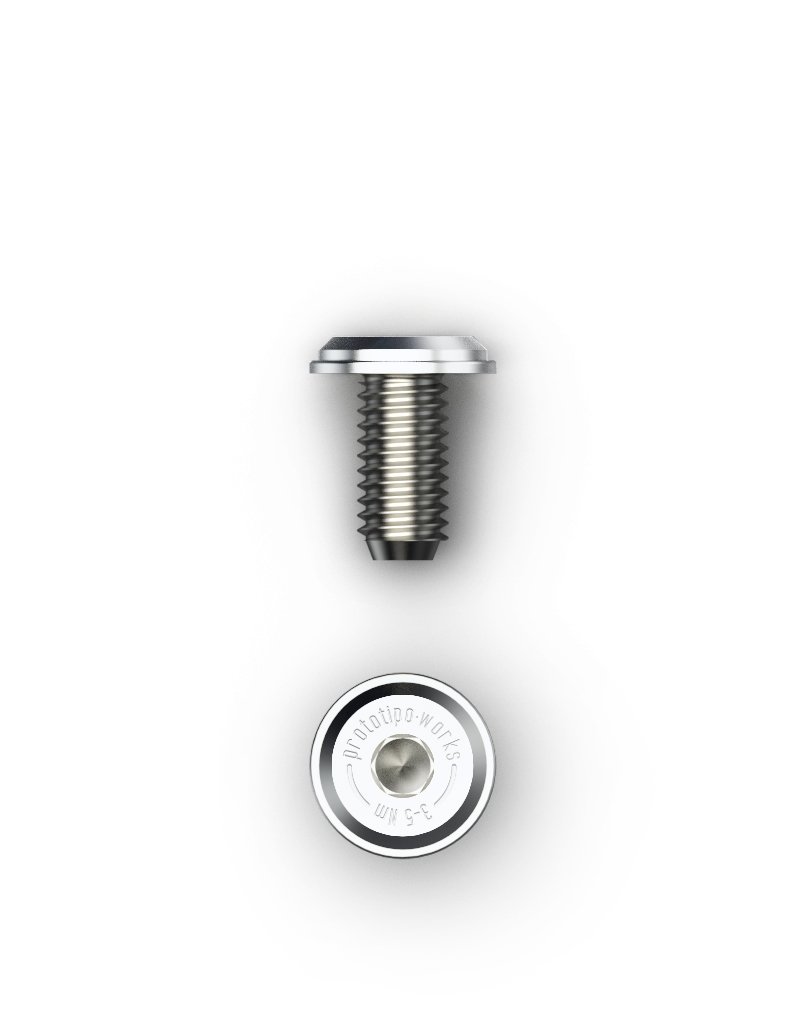

NEW Low Bidon (Bottle) Cage Bolts.
Diamond Burnished with PVD Titanium or Stealth Black coatings.
Our NEW improved Australian Made Low, slim and discreet neat 316 Stainless Steel finishing touches. Improvements include diamond burnished heads and a super strong cold formed rolled thread. Our Low Bidon (Bottle) Cage Bolts feature a slightly larger diameter head and an integrated flange that helps distribute their individual clamping force over a wider area (compared to our Ultra Low’s ). Available in our range of high performance Titanium coatings and colour options; Silver, Charcoal, Sedona, Champagne and Gold.
Can be used with or without bidon cages, in fork leg cage/accessory mounts, M5 friction shifter mounts and select cable guides.
(FAQ Size Info: Head diameter 10.0mm, Effective thread length 8.3mm.)

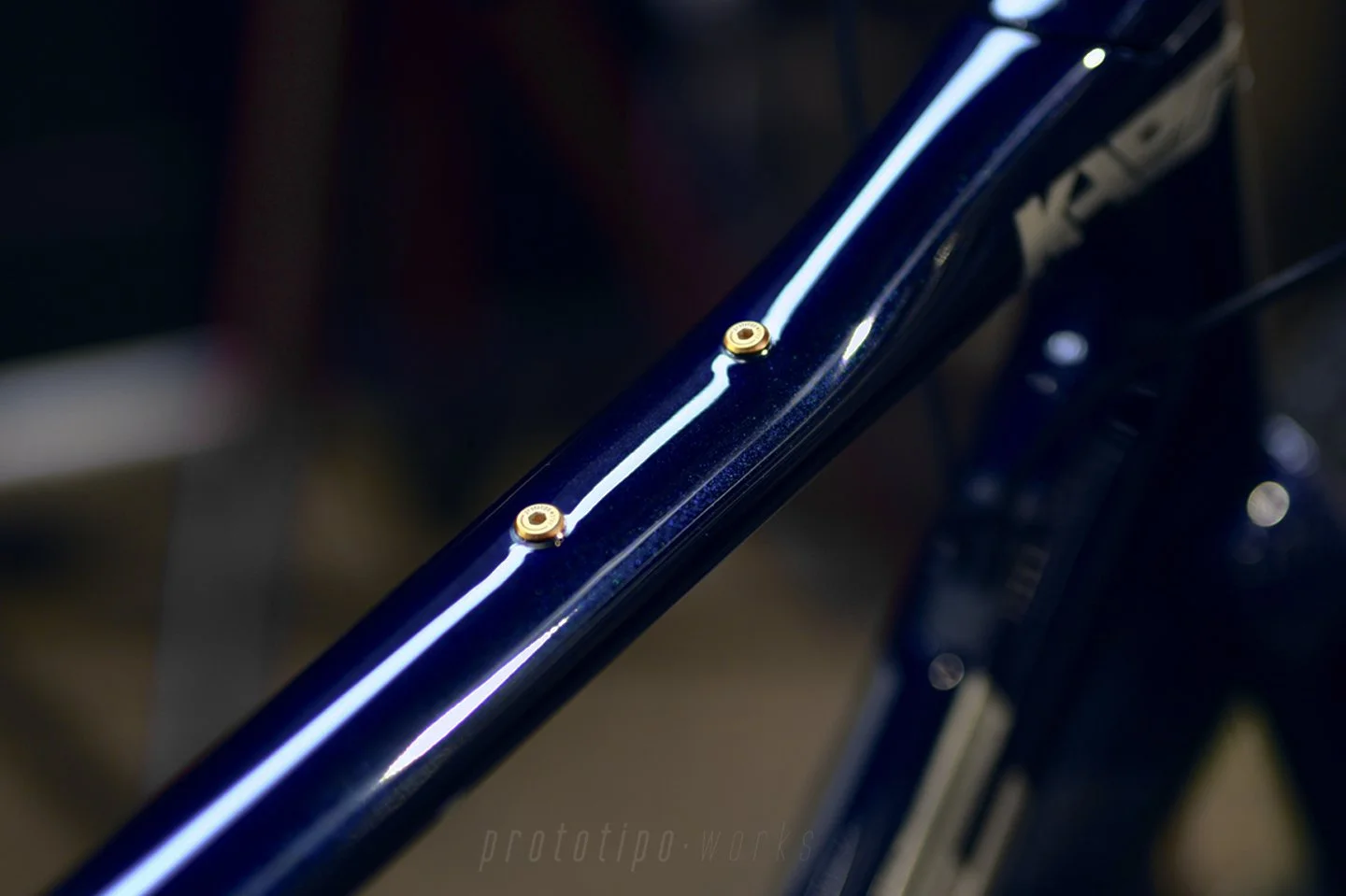

NEW Ultra Low Bidon (Bottle) Cage Bolts.
Diamond Burnished with PVD Titanium or Stealth Black coatings.
Our NEW improved Australian Made Ultra Low, slim and discreet neat 316 Stainless Steel finishing touches. Improvements include diamond burnished heads and a super strong cold formed rolled thread. Available in our range of high performance Titanium coatings and colour options; Silver, Charcoal, Sedona, Champagne and Gold.
Can be used with or without bidon cages, in fork leg cage/accessory mounts, M5 friction shifter mounts and select cable guides.
(FAQ Size Info: Head diameter 9.0mm, Effective thread length 8.3mm.)
Ultra Low Porter Bolts.
Diamond Burnished with PVD Titanium coatings.
A variant of our NEW Australian Made Ultra Low Bidon Cage Bolt. For applications where a little more thread is required.
Australian Made from 316 stainless steel, featuring a diamond burnished head, a strong cold formed rolled thread and a slightly thicker head than our standard Ultra Low bolts. Our Porter bolts are ideally suited for when your bidon (bottle) mounts share joint installation of accessories like frame pumps, lock holsters, multi-tool holders etc as well as your bidon cage. Available in our range of high performance Titanium coatings and colour options; Silver, Charcoal, Sedona, Champagne and Gold.
Can* be used with or without bidon cages, in fork leg cage/accessory mounts, M5 friction shifter mounts and select cable guides.
(FAQ Size Info: Head diameter 9.0mm, Effective thread length 12.3mm.)
*In frame mounts / accessory bosses need to be open (not blind) and/or deep enough to accommodate the extra thread length.
Ultra Low Bidon (Bottle) Cage Bolts - TYPE C.
Polished with PVD coatings.
A NEW addition to our lineup based on our popular Australian Made Low and Ultra Low Bidon Cage Bolts.
We listened to everyone who kindly reached out wanting a set of x4 of our premium CNC machined Ultra Low bolts with our PVD coating tech at a competitive price.
Introducing a limited run and design variant now sold as sets of x4 individual bolts. The NEW TYPE C variant is precision made, CNC machined to our standards in China with our engineering and manufacturing partner from 316 stainless steel. Featuring a strong thread and a polished slightly thicker head than our standard Australian Made Ultra Low bolts. Available in PVD coated colour options; Silver, Charcoal, and NEW for the first time Black.
Ultra Low Bidon (Bottle) Cage Bolts - TYPE C 7.9mm Head.
A NEW small batch addition to our lineup.
A few of you kindly asked for something smaller, something in between sizes, for something that sits neatly on top and crowns the less common narrow bosses that protrude a few mm up from tubesets.
Because of the reduced head diameter and clamping area the use with bidon cages and accessories is NOT recommended, this is purely a neat alternative finishing, crowning detail.
Leveraging the best qualities of our new Ultra Low TYPE C 9.0mm bolts these new smaller 7.9mm heads are now also available in a set of 4pcs, precision CNC machined from Stainless Steel, polished, laser etched and finished with our PVD coating.
(FAQ Size Info: Head diameter 7.9mm, Effective thread length 8.3mm.)
Ultra Low Bidon (Bottle) Cage Bolts - TYPE C 9.0mm Head.
Can be used with or without bidon cages, in fork leg cage/accessory mounts, M5 friction shifter mounts and select cable guides.
(FAQ Size Info: Head diameter 9.0mm, Effective thread length 8.3mm.)
Ultra Low Bidon (Bottle) Cage Bolts - TYPE C 9.0mm Head Porter.
For those situations requiring more thread length than our extended thread length Ultra Low Porter.
Introducing a new variant of our Ultra Low TYPE C (9.0M) the Ultra Low TYPE C (9.0) Porter, identical but with around 30.0mm effective thread.
For applications where more thread is needed. A common example is when mounting two or more accessories like a frame pump holder and a bidon cage on the same pair of bidon / accessory mounts.
(FAQ Size Info: Head diameter 9.0mm, Effective thread length 30.0mm.)
Decals / Stickers.
UV stable, outdoor grade premium vinyl cut decals. Great for helmets, frames, toolboxes, fridges, you name it!
Gift Cards.
Prototipo Works Online Store Gift Card (Digital)
A great gift idea available in AUD$25, AUD$50, AUD$75 and AUD$100 amounts and can be used for anything available in our online store. Upon purchase a unique code will be issued and sent by email.
Shipping Service Only.
We have provided these options for easier commerce when a shipping solution is needed outside of our regular online shop. Case by case only, we will be in touch via personal email if you need to select either of these options.
Unique Product Purchase.
We have provided these options for easier commerce when a unique product purchase solution is needed outside of our regular online shop. Case by case only, we will be in touch via personal email if you need to select either of these options.
Sale Items.
Run out designs, last of’s, samples and from time to time manufacturing oddities and cosmetic rejects (mis-aligned laser etching or coating discrepancies). There are no refunds, exchange or credit for sale items.
Original Bidon Cage Bolts.
Our first design, reproduced due to popular demand.
These lightweight 6061 Aluminium Alloy versions have a max torque rating of 2Nm. Available in hard anodised Matte Black or Red.
[Head diameter is 9.0mm, Effective thread length is 8.75mm.]
Under Flush Bidon Cage Boss Blanks.
Neatly blank off those unused bidon cage mount holes.
These lightweight 6061 Aluminium Alloy versions have a 5.5mm head diameter and are hard anodised in Matte Black.
5.5MM Diameter Head V3. 3.0mm Hex, 2.5mm Tall Head.
Discontinued Designs.
We’re always improving. Here are our replaced or superseded designs. New improved evolutions of our designs are available in the above sections. The new improved designs incorporate many of our new ideas, new technologies and new processes coupled with your suggestions and appreciated inputs.
Ultra Low Bidon (Bottle) Cage Bolts.
Our original Australian Made Ultra Low, slim, neat and discreet 316 Stainless Steel finishing touches.
Low Bidon (Bottle) Cage Bolts.
Our original Australian Made Low, strong, neat and discreet 316 Stainless Steel finishing touches.
Our first design made from 6061 Aluminium Alloy with a max torque rating of 3-5Nm. Available in hard anodised Matte Black.
All of our precision made products to date at a quick glance:
